Accusump Electric Pressure Control Valve 1.4~1.7 Bar (20~25 Psi)

Accusump EPC valve

• Allows remote operation of the accumulator
• The accumulator can be operated automatically depending on the mounting choice
• Rapid refill rate of the accumulator ideal for competition
• Opens when the pressure is between 1.4 and 1.7 bar (20-25 psi)
• 1/2″ NPT female thread in and out ports with built-in 1/4″ NPT pressure sensor port

Accusump 1.4~1.7 bar EPC Valve Specifications

This EPC (Electric Pressure Control) valve controls the oil flow between the engine and the Accusump accumulator. This ideal racing solution combines the convenience of a standard electric valve with the fast refill rate of a manual valve.

To maximise the amount of oil available, this device opens to allow oil to be discharged only when the pressure drops below a predetermined level. Refilling occurs when the pressure rises above that level.

It is important to select a valve with a pressure switch that is below your warm idle oil pressure so the Accusump will not be discharging at idle. Yet you must also pick a valve with a pressure setting close enough to your normal operating pressure.

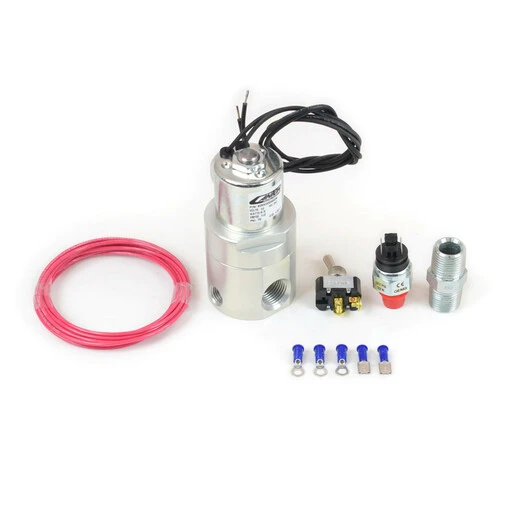

This kit contains a 1/2″ NPT female threaded electric valve, a 1/2″ NPT nipple, a 1.4~1.7 bar (20~25 psi) EPC regulator, a switch, a cable, lugs and installation instructions.
