Deatschwerks DWR1000 Adjustable Fuel Pressure Regulator E85 (Titan)

Control fuel pressure with Deatschwerks

• Controls fuel up to 7 bar with precision and stability
• Supports a flow rate of up to 500 litres / hour

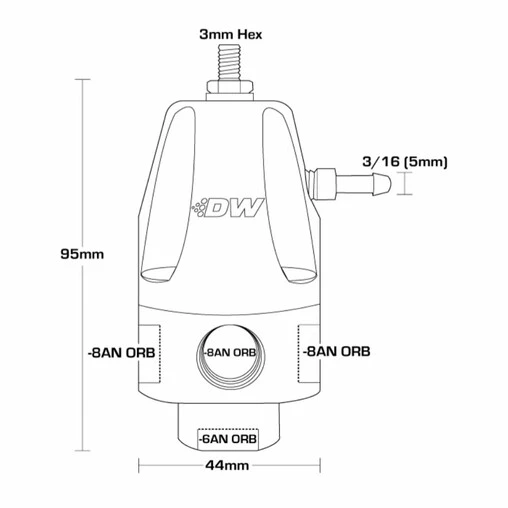

• Quad -8 AN ORB inlet (Dash 8)
• Single -6 AN ORB outlet (Dash 6)
• 1/8″ NPT port for a pressure gauge
• Ø40 mm nitrile diaphragm
• Compatible with all fuels, including E85
• Part number: 6-1000-FRT
• Anodised “titan” finish

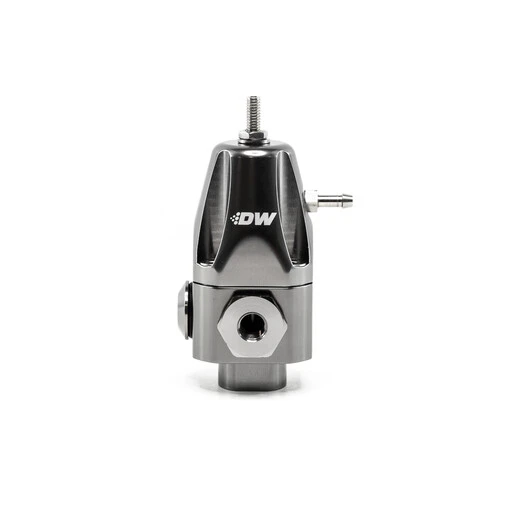

Deatschwerks DWR1000 Adjustable Fuel Pressure Regulator (Titan)

This universal fuel pressure regulator is manufactured in the USA by Deatschwerks. It’s made from forged aluminium and can be regulated with a high level of precision from 2 to 7 bar, at a flow rate of 500 liters per hour. Using -6 AN ORB and -8 AN ORB fittings, you can adapt it to any fuel system and use its 1/8″ NPT port for connecting a pressure gauge.

The regulator uses a 40 mm nitrile diaphragm, which is highly resistant to wear and compatible with all types of fuel – gasoline, ethanol, E85, Methanol etc…
